Descrição
Abre mesmo quando presa à âncoragem.

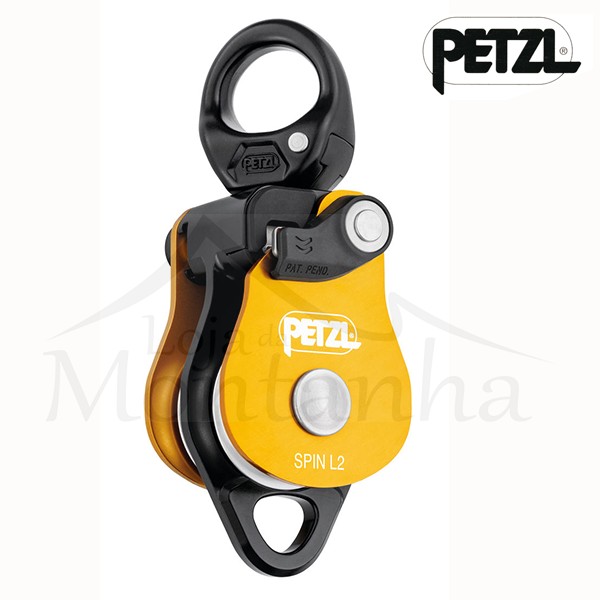

A Roldana SPIN L2 foi projetada para máxima simplicidade na configuração de sistemas de transporte ou desvio de carga e tirolesas.
A roldana de grande diâmetro montada em rolamentos de esferas vedados oferece excelente eficiência.
O destrocedor facilita o manuseio, permitindo que a roldana seja orientada sob carga e conexão direta de mosquetões, cordas ou cintas.
Description
- Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:
– triple-action opening of the moving side plate is quick and easy, even with gloves
– the rope can be installed with the device connected to the anchor.
– red mark provides a visual warning when the moving side plate is unlocked
– special side plate design protects the rope path - Optimal efficiency and easy handling:
– large diameter sheave mounted on sealed ball bearings for excellent efficiency
– swivel allows pulley to be oriented under load
– swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.
Specifications
- Weight: 290 g
- Certification(s): CE EN 12278, NFPA 1983 Pulley General Use, UIAA
- Material(s): aluminum, stainless steel, nylon
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 38 mm
- Maximum working load: 4 x 2 = 8 kN
- Breaking strength: 36 kN
- Efficiency: 95 %
